How to Get Custom CNC Aluminum Parts Made from CAD Drawings

Learn how to turn CAD drawings into custom CNC aluminum parts through DFM, material selection, tolerances, prototyping, surface finishing, inspection, and production.

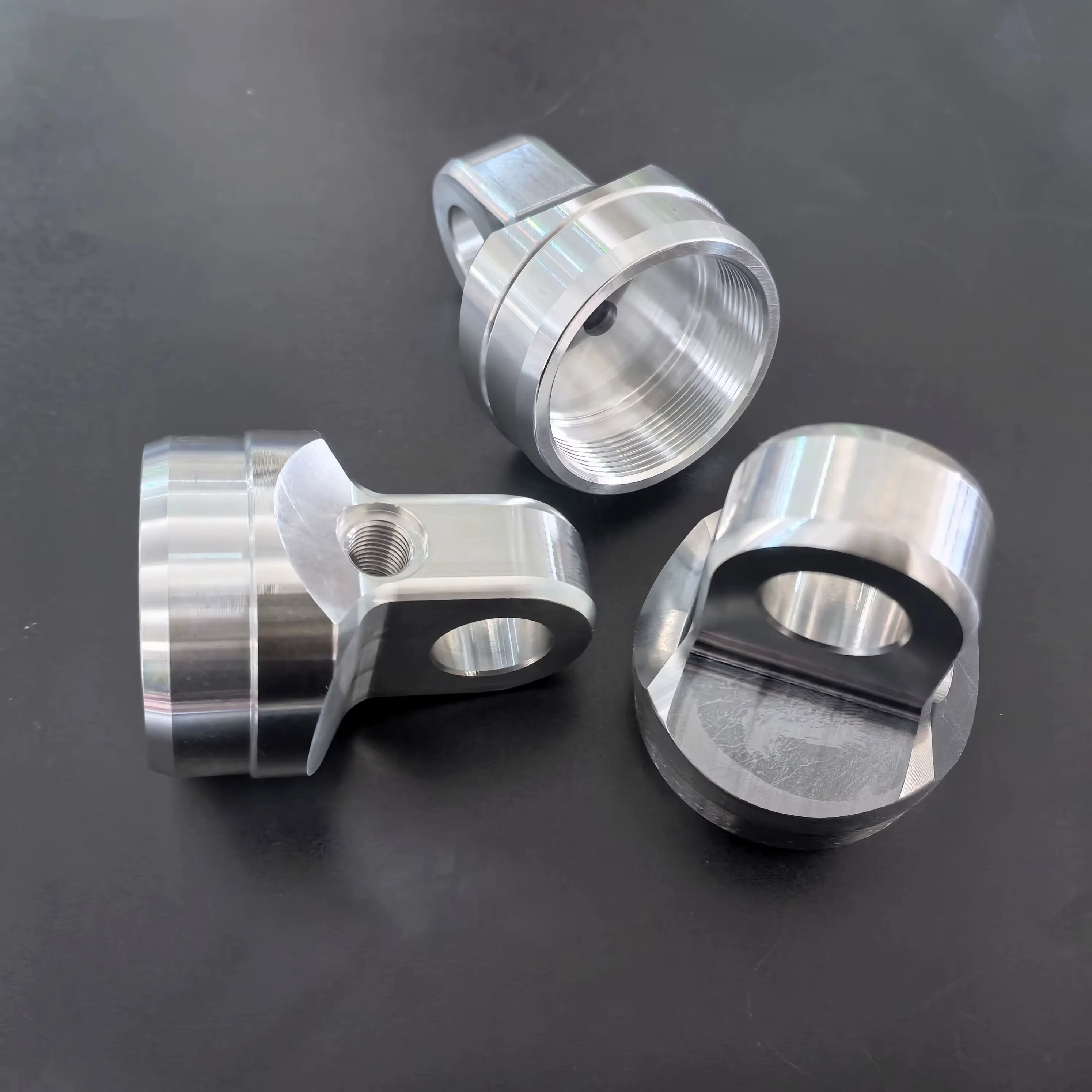

Hc841880ab4884327ab6daae310de32f53
Developing a custom CNC aluminum part involves more than sending a 3D model to a machine shop and asking for a price.
A design that looks complete on screen may still contain features that are difficult or expensive to machine. Material grade, tolerances, tool access, surface finish, production quantity, inspection requirements, and assembly conditions can all affect the final cost and manufacturing result.
For product designers, engineers, project managers, and strategic buyers, preparing the right information before requesting a quotation can shorten development time and reduce unnecessary revisions.
This guide explains how to move from a CAD drawing or product concept to a production-ready custom CNC aluminum part.

What Information Is Needed for a CNC Machining Quotation?

A manufacturer generally needs more than a reference image to provide an accurate quotation.
A useful request for quotation should include:
  • A 3D CAD file in STEP, STP, IGES, or X_T format
  • A 2D technical drawing
  • Preferred aluminum grade
  • Critical dimensions and tolerances
  • Thread and hole specifications
  • Surface finish requirements
  • Prototype and production quantities
  • Inspection or testing requirements
  • Target delivery schedule
  • Packaging and assembly requirements
A 3D model describes the geometry of the part, while the 2D drawing communicates details such as tolerances, threads, surface roughness, finishes, and inspection requirements.
When a complete drawing is not available, development may begin with a sketch, an existing sample, or basic dimensional information. However, additional engineering review may be required before machining can begin.

Step 1: Explain the Part’s Application

The manufacturer should understand how and where the aluminum part will be used.
Important information includes:
  • Whether the part is structural, cosmetic, protective, or load-bearing
  • Whether it will be used indoors or outdoors
  • Whether it will experience heat, vibration, impact, or chemical exposure
  • Whether it must fit or move with another component
  • Which dimensions are critical to assembly
  • Whether appearance or mechanical performance is the main priority
This information helps the manufacturer evaluate the material, machining process, tolerances, and surface treatment.
Two aluminum parts with similar geometry may require different manufacturing plans if one is a visible enclosure and the other is a structural machine component.

Step 2: Choose a Suitable Aluminum Grade

Different aluminum alloys provide different combinations of machinability, strength, corrosion resistance, appearance, and cost.
The material should be selected according to the part’s function, operating environment, finishing requirements, and production budget.

Machinability

Some aluminum alloys are easier to machine and can produce a more consistent surface finish.
Mechanical Performance
Structural or load-bearing parts may require greater strength than decorative covers, housings, or non-structural components.

Corrosion Resistance

Parts exposed to moisture, outdoor environments, or chemicals may require a suitable aluminum alloy and protective surface treatment.

Surface Finishing

The selected alloy can affect the appearance and consistency of anodizing, polishing, coating, and other finishing processes.
Instead of selecting an alloy only because it is commonly used, buyers should explain the required function and working environment. The manufacturer can then evaluate whether the proposed material is suitable for the project.

Step 3: Review the Design for CNC Machining

A Design for Manufacturing review helps identify features that may increase machining time, require special tools, or create quality risks.
A CNC machining review may examine:
  • Deep and narrow cavities
  • Sharp internal corners
  • Thin walls
  • Small or deep holes
  • Thread depth
  • Tool accessibility
  • Part rigidity during machining
  • Workholding and clamping surfaces
  • Excessively tight tolerances
  • Difficult inspection points
  • Surface finish requirements
For example, a sharp internal corner cannot normally be produced by a standard round cutting tool. The design may require an internal radius, a different process, or additional machining.
Thin walls may move or deform during machining. Deep cavities may require longer tools, which can reduce machining stability and increase processing time.
A DFM review should preserve the intended function of the part while making production more practical and repeatable.

Step 4: Define Tolerances Based on Function

Tighter tolerances usually require more machining time, inspection, and process control.
Not every dimension needs the same tolerance.
The designer should identify dimensions that directly affect:
  • Assembly fit
  • Alignment
  • Bearing or shaft installation
  • Sealing
  • Movement
  • Functional performance
  • Interchangeability
Non-critical dimensions can usually use general machining tolerances.
Applying very tight tolerances to the entire drawing may increase cost without improving product performance. A better approach is to define stricter tolerances only for critical features.
The quotation should also clarify how the manufacturer will inspect these dimensions and whether a dimensional inspection report is required.

Step 5: Select the Required Surface Finish

CNC aluminum parts can be supplied with an as-machined finish or receive additional surface treatment.
Common finishing options include:
  • As-machined finish
  • Bead blasting
  • Brushing
  • Polishing
  • Anodizing
  • Hard anodizing
  • Powder coating
  • Painting
  • Laser marking
The appropriate finish depends on the part’s appearance, wear resistance, corrosion protection, electrical requirements, and working environment.
Designers and buyers should specify:
  • Required finish
  • Color reference
  • Cosmetic surfaces
  • Areas that must be masked
  • Whether slight color variation is acceptable
  • Whether machining marks are permitted
  • Whether threaded holes require protection during finishing
Surface finishing can affect dimensions, appearance, and assembly. It should therefore be considered during the design stage rather than after machining has been completed.

Step 6: Produce and Inspect a Prototype

A CNC-machined prototype allows the development team to evaluate the design before placing a larger production order.
Prototype inspection may include:
  • Overall dimensions
  • Assembly fit
  • Hole and thread positions
  • Surface quality
  • Product appearance
  • Functional performance
  • Installation method
  • Compatibility with related components
The purpose of the prototype should be defined in advance.
A visual prototype may primarily confirm shape and appearance, while a functional prototype may require the intended production material, tolerances, and surface finish.
After testing, all approved changes should be reflected in the latest CAD file and technical drawing before production begins.

Step 7: Prepare for Small-Batch or Mass Production

Once the prototype has been approved, the project can move into pilot or regular production.
Before production, the buyer and manufacturer should confirm:
  • Final drawing revision
  • Approved aluminum grade
  • Critical dimensions and tolerances
  • Surface finish
  • Inspection method
  • Approved reference sample
  • Order quantity
  • Packaging method
  • Labeling requirements
  • Delivery schedule

A small pilot batch may be useful for new products. It allows the buyer to verify assembly, quality consistency, packaging, and actual production performance before increasing the order quantity.
Revision control is essential. The manufacturer, designer, engineering team, and purchasing department should all work from the same approved file version.

What Affects the Cost of Custom CNC Aluminum Parts?

The price of a custom CNC aluminum part is influenced by several factors:
  • Part dimensions
  • Aluminum grade
  • Material utilization
  • Geometry and machining complexity
  • Number of machining operations
  • Setup and workholding requirements
  • Tolerances
  • Surface roughness
  • Threaded and precision holes
  • Surface treatment
  • Inspection requirements
  • Prototype or production quantity
  • Packaging requirements

Reducing the cost does not necessarily mean choosing the cheapest material or supplier.
Design simplification, practical tolerances, easier tool access, standardized holes and threads, and suitable order quantities may reduce the total manufacturing cost without affecting product performance.

Common Problems That Delay CNC Aluminum Projects

Sending Only an Image

An image may communicate the general appearance but does not define accurate dimensions, tolerances, or hidden features.

Providing a 3D File Without a Drawing

The manufacturer may not know which dimensions are critical or whether special surface and inspection requirements apply.

Applying Tight Tolerances Everywhere

This can increase machining and inspection costs unnecessarily.

Ignoring Tool Access

Features that cannot be reached by a cutting tool may require redesign, multiple setups, or a different manufacturing process.

Changing the Design After Machining Starts

Late revisions may result in unusable material, repeated setup work, additional cost, and delayed delivery.

Failing to Define Cosmetic Requirements

The buyer and supplier may have different interpretations of acceptable machining marks, scratches, color variation, or surface texture.

How to Receive a More Accurate CNC Machining Quotation

Before contacting a CNC machining supplier, prepare as much of the following information as possible:
  1. Send the latest 3D CAD file.
  1. Include a 2D drawing with tolerances.
  1. Explain the application of the part.
  1. Specify the preferred aluminum grade or required properties.
  1. Mark all critical dimensions.
  1. Define the surface finish and color.
  1. State prototype and production quantities separately.
  1. List inspection and documentation requirements.
  1. Confirm the delivery destination and target schedule.
  1. Identify any confidential project information.

Clear project information allows the manufacturer to review manufacturability and provide a more meaningful quotation.

Need Custom CNC Aluminum Parts for Your Project?

If you are developing a new product or sourcing a manufacturer for an existing aluminum component, send us your CAD file, technical drawing, physical sample, or project requirements for evaluation.
Please include:
  • Product application
  • CAD file or drawing
  • Preferred aluminum grade
  • Required quantity
  • Critical tolerances
  • Surface finish
  • Inspection requirements
  • Target delivery date
Request a Quote for Custom CNC Aluminum Parts
